Wax Resin – Precision Casting Starts with the Right Print

Now, Wax Resin isn’t your everyday 3D print material. You don’t use it for brackets, jigs or housings. This is what we use when someone’s doing investment casting — usually in the jewellery, dental, or precision metal industries. Think tiny threads, sharp edges, and super-smooth surface detail.

It prints parts that burn out clean, without ash or residue — which is exactly what you need for lost wax casting. If the printed part doesn't disappear cleanly, the final metal piece won’t form properly. That’s why this material exists — to bridge the gap between CAD and cast metal, without tooling, and without compromise.

Key Technical Characteristics (Typical Values)

• Surface finish: Extremely smooth – almost zero layer lines • Print resolution: As low as 25 microns • Ash content after burnout: <0.01% • Melting point: ~60°C–70°C (low temp, melts clean) • Flexibility: Brittle – not designed for handling or load • Dimensional accuracy: Very high – ideal for fine geometry • Strength: Low – intended for short handling, not use • Colour: Typically dark blue or purple (for inspection ease)

This is a precision tool — not a functional material. It’s about what comes after the print.

Why Blue Wax Resin Is Unique Compared to Standard Resins

What makes blue wax resin genuinely different is its thermal behaviour. Standard resins are rigid polymers that expand, crack, or leave carbon residue when heated. Blue wax resin is formulated with wax-like components that soften, flow, and evacuate the mould during burnout. That controlled melt-away characteristic prevents mould stress, cracking, and contamination—three of the biggest failure points in traditional casting.

From a manufacturing standpoint, this matters enormously. When you’re casting a ring shank with a 0.6 mm wall thickness, or a mechanical component with internal oil galleries, you cannot afford expansion pressure inside the investment mould. Blue wax resin eliminates that risk. It burns out predictably between 250 °C and 750 °C, depending on formulation, and leaves an exceptionally clean cavity. That cleanliness directly translates into better surface finish, tighter tolerances, and less post-casting machining.

How 3D Printing Transforms Wax Pattern Production

Traditionally, wax patterns were hand-carved or injection-moulded. Both methods are slow, skill-dependent, and expensive at low volumes. With 3D printing, I can design a part in CAD, validate clearances digitally, print it overnight, and have it ready for investment casting the next morning. That’s not incremental improvement—that’s a complete workflow shift.

3D printing allows complex internal geometries that simply cannot be carved by hand. Lattices, undercuts, internal channels, logo embossing, serialisation—all achievable in a single print. For customers restoring heritage components, producing bespoke jewellery, or manufacturing low-volume precision parts, this capability is transformative. It removes tooling costs entirely and collapses development cycles from months to days.

Real-World Benefit: Cost, Accuracy, and Control

The biggest benefit, without question, is control. Control over geometry. Control over iteration. Control over cost. Injection-moulded wax tooling can run into thousands before the first usable part is produced. With blue wax resin, there is no tooling. Each revision is simply a new print. If a customer wants to adjust a fillet radius by 0.3 mm or thicken a stress-bearing rib, that change is done digitally and printed immediately.

From a commercial perspective, this is why small manufacturers, jewellers, restorers, and engineers are adopting this technology so rapidly. You are no longer locked into minimum order quantities or long lead times. You produce exactly what you need, when you need it, to the exact specification required.

Technical Breakdown: Material Properties (Typical)

Blue wax resins vary slightly by manufacturer, but most professional-grade formulations fall within these ranges:

Printing Technology: SLA / DLP / MSLA

Layer Height: 25–50 µm (standard), down to 10 µm for micro-detail

Viscosity: Medium-low for fine feature resolution

Ash Content: < 0.05% after burnout

Burnout Temperature Range: 250 °C – 750 °C

Dimensional Accuracy: ±0.05 mm achievable

Surface Finish: Smooth, near-wax quality

Post-Cure Requirement: Minimal or none (depends on formulation)

This combination is precisely why blue wax resin is not interchangeable with standard “tough” or “engineering” resins. Each material has its job. This one’s job is casting perfection.

Real-World Application: Jewellery Manufacturing

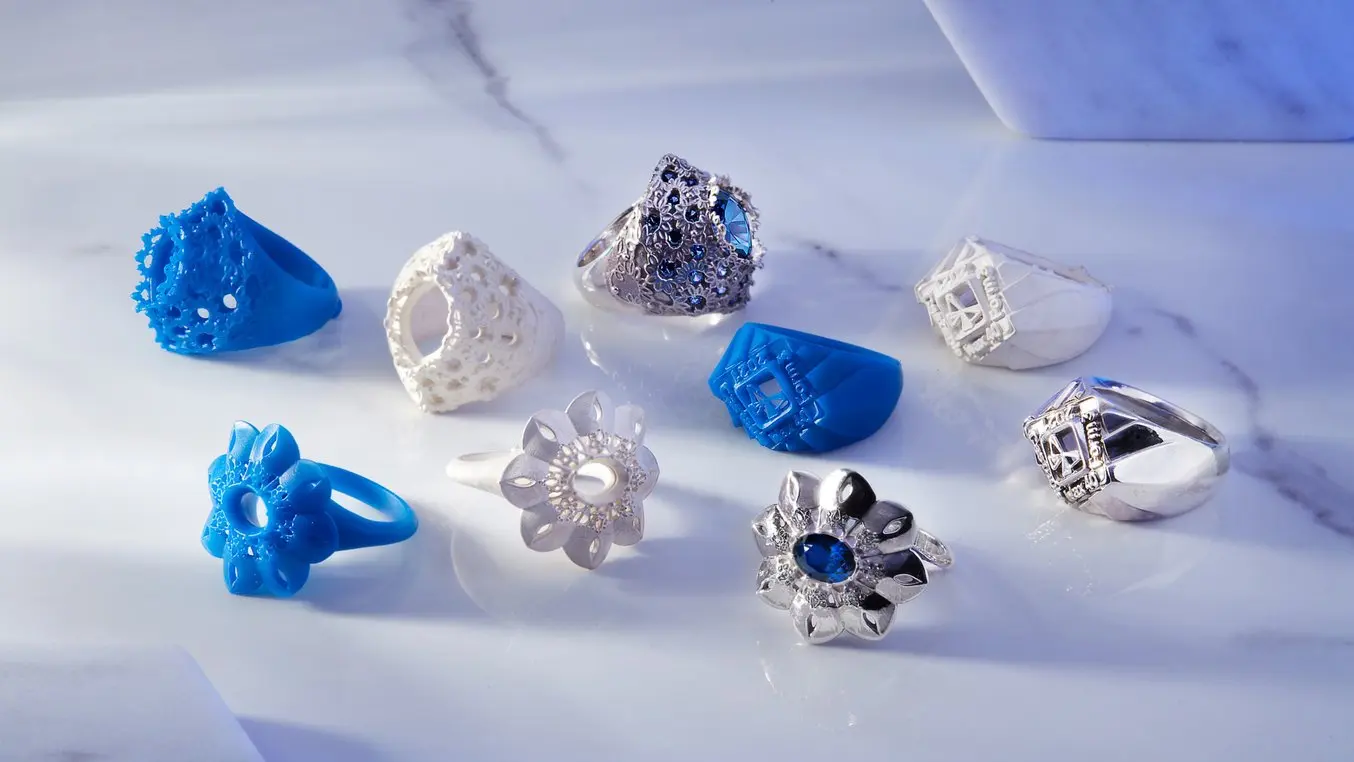

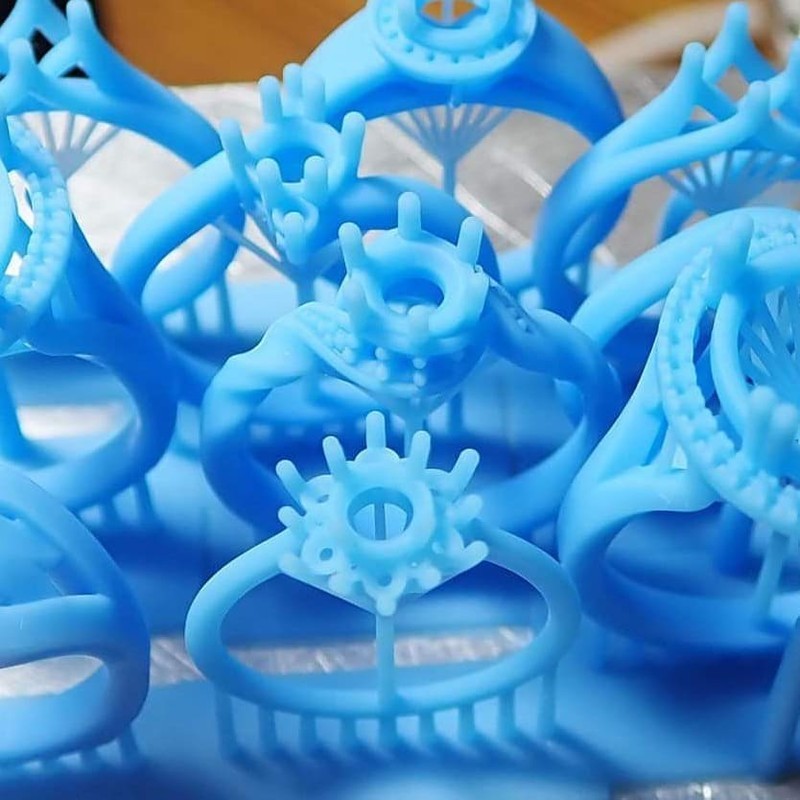

In jewellery, blue wax resin has become the industry standard for high-detail casting. Rings, pendants, signet crests, and bespoke mounts benefit enormously from the crisp edges and clean burnout. Pavé settings, micro-prongs, and engraved lettering print sharply and cast cleanly, reducing stone-setting time and scrap rates.

A jeweller can now iterate a design with a customer in days rather than weeks. Try that with hand-carved wax and you’ll immediately see why this technology has been adopted so widely.

Real-World Application: Engineering & Restoration:

Beyond jewellery, blue wax resin plays a vital role in heritage restoration and low-volume engineering. Obsolete mechanical parts, decorative metal fittings, control knobs, marine hardware, and architectural elements can be digitally recreated, printed, and cast without ever needing original tooling.

This is especially valuable when restoring equipment where replacement parts simply do not exist anymore. I’ve seen components that would cost tens of thousands to remanufacture traditionally produced accurately for a fraction of that cost using this workflow.
