Understanding and Mitigating Linear Buckling

Trevor English • 31 January 2017

Linear buckling typically occurs when there is a sudden loss in stiffness due to compressive loading. It’s a problem that you swiftly want to avoid within your designs – so let’s take a look at its root causes and how to mitigate the problem.

As an engineer, designing around failure modes will likely involve some form of finite element analysis (FEA). In order to analyze the factor of safety properly on an element, however, you need to identify the failure mode. While yielding is certainly the most common, it’s not the only mode of failure. Yielding tends to be somewhat predictable in a material, but other modes of failure like linear buckling can occur suddenly without any warning.

Linear buckling has the possibility of occurring on any thin member of a design. Its root cause lies in the thickness of the member in relation to the stress elements. As a small displacement occurs internal to a member due to an applied load, there appears a stiffening within any given element. This loading produces a stress dependent stiffening effect which compounds onto the linear static stiffness of the member. When the stress-dependent stiffness internal to a member overcomes the linear static stiffness, buckling occurs. To explain it more simply, when a component is placed under a load that causes large internal stresses relative to the material stiffness, it buckles.

Now that we understand how and why a component linearly buckles, let’s look at the analysis techniques you can use to determine if a member in your design is at risk.

When determining how or if a component will fail through linear buckling, one needs to find the first positive buckling mode. There may be many buckling modes for a component, but due to the catastrophic nature of buckling failures, a component will likely never undergo more than one buckling event. As a program undergoes FEA, it calculates the buckling load factors to produce the ultimate load magnitude. This load is almost always overestimated in analysis and the results output are normally nonconservative. Most FEA programs analyze a component as a smooth solid member without imperfections. In actuality, manufactured parts have imperfections – whether that be a chip or an uneven face. As a result of the combined imperfections in the analysis from minor mathematical flaws and more major modeling issues, the results of Linear FEA tend to be more cautionary than absolute.

With the implementation of Nastran In-CAD inside of Inventor or SolidWorks, problems of linear buckling can be solved as part of your normal workflow. After completing your yield analysis on a member, you can simply change your stress analysis to a linear buckling type. This allows you to keep your previous loading conditions and determine the maximum loading before a part buckles. You can see more in the video below.

This article explores the benefits, technical insights,
by Dwight Mitchell 4 February 2025
This article explores the benefits, technical insights, and real-world applications of 3D-printed anodized components
With over 30 years in the mechanical manufacturing sector, I've seen technology evolve at a breaknec
by Dwight Mitchell 28 January 2025
With over 30 years in the mechanical manufacturing sector, I've seen technology evolve at a breakneck pace. Today, we'll explore some of the top contenders in the high-speed 3D printing arena:
Fusion 360’s Additive Manufacturing Workspace is a game-changer for design engineers and manufactur
by Dwight Mitchell 5 December 2024
Fusion 360’s Additive Manufacturing Workspace is a game-changer for design engineers and manufacturing,
3D Printing Services and Technology
by Dwight Mitchell 16 July 2024
3D printing, also known as additive manufacturing, has transformed industries by enabling the creation of complex geometries that traditional methods can't achieve.
3D Printing: Innovations, Challenges, and Applications
by Dwight Mitchell 10 July 2024
The world of 3D printing or Additive manufacturing is changing at a neck-breaking speed with new technology and new materials entering the market frequently.
3D Printing with Polystyrene (High Impact Polystyrene (HIPS)):
by Dwight Mitchell 4 July 2024
3D Printing with Polystyrene (High Impact Polystyrene (HIPS))
Comparative Analysis of 3D Printing Filaments
by Dwight Mitchell 2 July 2024
I know it can be confusing to know which is the right material and also which is the best brand to use.

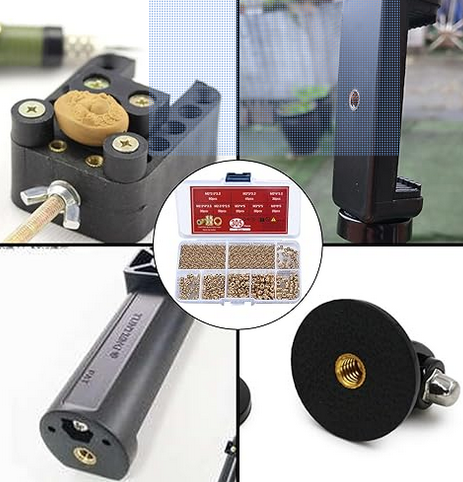

Threaded Inserts in 3D Printed Products
by Dwight Mitchell 27 June 2024
One of the shortfalls of printing a functional part in plastic is that it can wear very quickly especially if you are producing parts that need to or have a screw fixture.

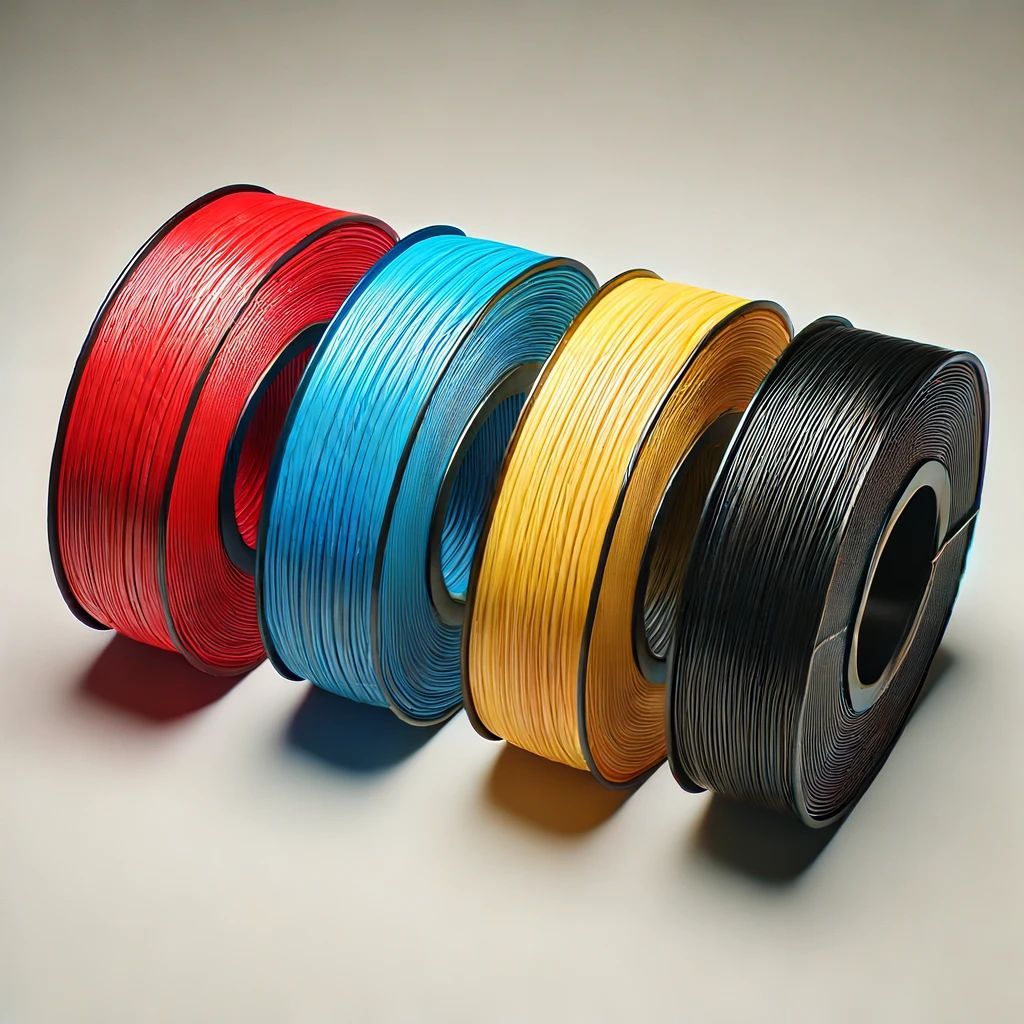

Which is the Best TPU Filaments in 2024?
