High Speed 3D Printers

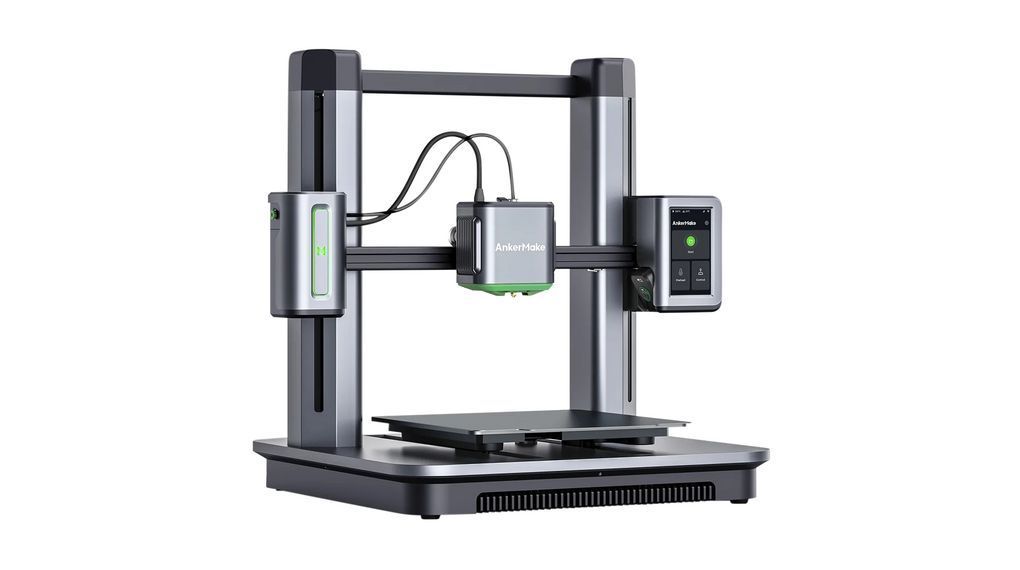

AnkerMake M5

Anker, known for its consumer electronics, ventured into 3D printing with the AnkerMake M5, emphasizing speed and user-friendly features.

• Build Volume: 220 x 220 x 250 mm.
• Printing Speed: Capable of reaching up to 500 mm/s, with an average speed around 250 mm/s.



Features:
The AnkerMake M5 stands out for its blend of speed, accuracy, and intelligent monitoring. Its PowerBoost™ 2.0 motion control system leverages dual processors, one focused on managing tasks like slicing and remote connectivity, while the other handles precise motion controls for smooth, high-speed prints.

The M5's integrated AI camera is a game-changer, enabling real-time monitoring and error detection. If a print fails or a layer shift occurs, the system immediately alerts users, significantly reducing wasted filament and time.

Its ultra-direct extruder minimizes filament slack and improves precision, especially for flexible materials like TPU.

The 7x7 auto-bed leveling system ensures consistent first-layer adhesion, even on uneven surfaces, by using advanced sensors to map the bed's topology.

The dual z-axis design stabilizes the print bed during high-speed operations, reducing wobble and ensuring consistent layers.

For added convenience, the M5 features cloud-based printing, allowing users to start, stop, and monitor prints from anywhere using the AnkerMake app. The printer also includes pre-assembled components, making it easy to set up in under 15 minutes.

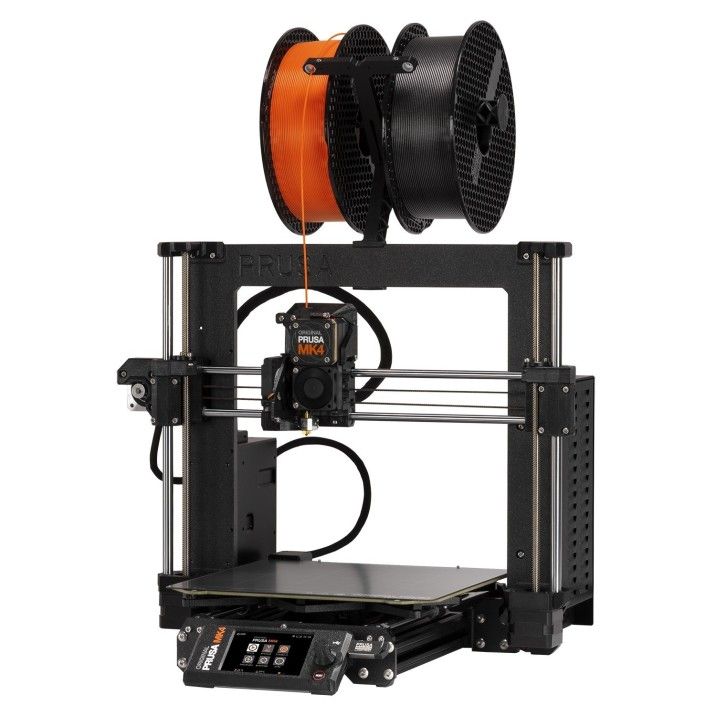

Prusa MK4

Prusa has long been a trusted name in the 3D printing community, and the MK4 continues this legacy with notable enhancements.

• Build Volume: 250 x 210 x 220 mm.

Features:
The Prusa MK4 brings an array of thoughtful upgrades designed for both beginners and experienced users.

The 32-bit Buddy Board enhances processing power, ensuring smoother operations and faster response times.

 Its new extruder design incorporates a direct drive system, which significantly improves performance with flexible filaments like TPU and TPE. The extruder also features a quick-swap nozzle, allowing users to change nozzles effortlessly without disassembling the hot end.

The auto-bed leveling system uses the PINDA 3 probe, a temperature-resistant sensor that ensures accurate readings regardless of ambient conditions. This results in perfect first layers every time.

The MK4's silent operation is thanks to its Trinamic stepper drivers, which minimize noise without sacrificing speed or performance.

For connectivity, the optional ESP Wi-Fi module enables wireless monitoring and updates, while the USB-C port provides fast, reliable data transfer for offline users.

One unique feature of the MK4 is its compatibility with a wide range of filaments, including PLA, PETG, ABS, and exotic materials like polycarbonate and wood composites.

 Its custom firmware is optimized for print quality and user customization, offering advanced features like linear advance and input shaping for reduced ringing.

 The printer’s modular design also allows users to upgrade components as needed, ensuring long-term value and adaptability.

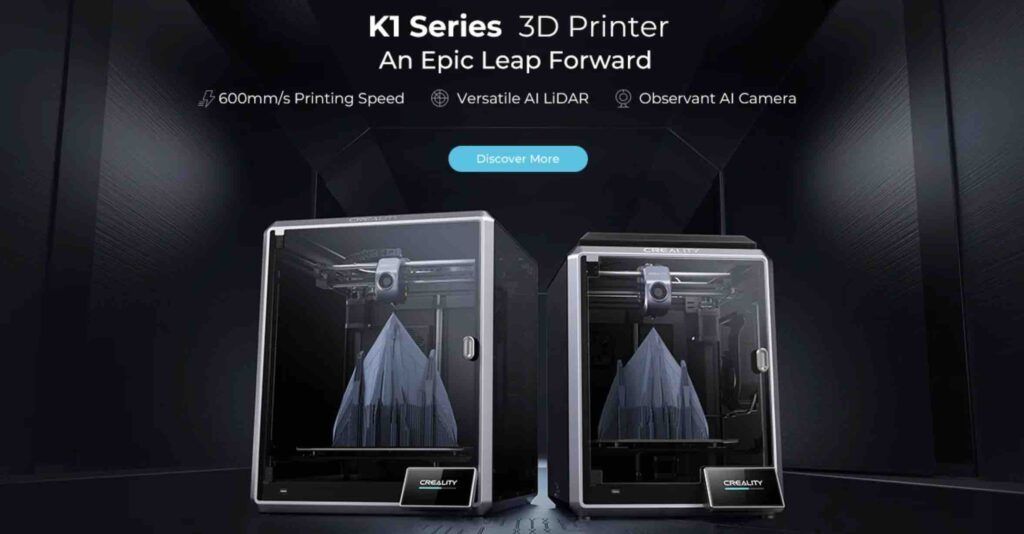

Creality K1 Series

Creality's K1 series aims to deliver high-speed printing with innovative features.

• Models: K1 and K1 Max.
• Build Volume: 220 x 220 x 250 mm for K1;      300 x 300 x 300 mm for K1 Max.
• Printing Speed: Up to 600 mm/s.

Features:
The Creality K1 Series, including the K1 and K1 Max, introduces high-performance features geared toward speed and precision.

Its CoreXY motion system is one of the highlights, offering faster and more stable movement compared to traditional Cartesian printers.

 Paired with a lightweight printhead, the K1 achieves speeds of up to 600 mm/s without sacrificing detail or print quality.

The ceramic heater embedded in the hot end allows it to reach 200°C in just 40 seconds, with a maximum temperature of 300°C, making it suitable for engineering-grade materials like ABS, ASA, and polycarbonate.

 The K1 Max adds AI LiDAR scanning, which performs detailed bed mapping and first-layer inspections, ensuring flawless adhesion and precision. The inclusion of an AI Camera in the Max model further enhances print reliability by identifying issues like stringing, nozzle clogging, or failed prints in real time.

The Creality OS powers the K1 series, offering an intuitive user interface and seamless connectivity with Creality Cloud for remote control and slicing.

Its self-testing capability runs diagnostics before each print, ensuring the machine is in optimal condition. Additionally, the dual-core 1.2GHz CPU handles complex slicing tasks quickly, reducing preparation time.

The built-in filament run-out sensor and power loss recovery features add reliability to long prints, and the K1 Max’s larger build volume makes it ideal for big projects.

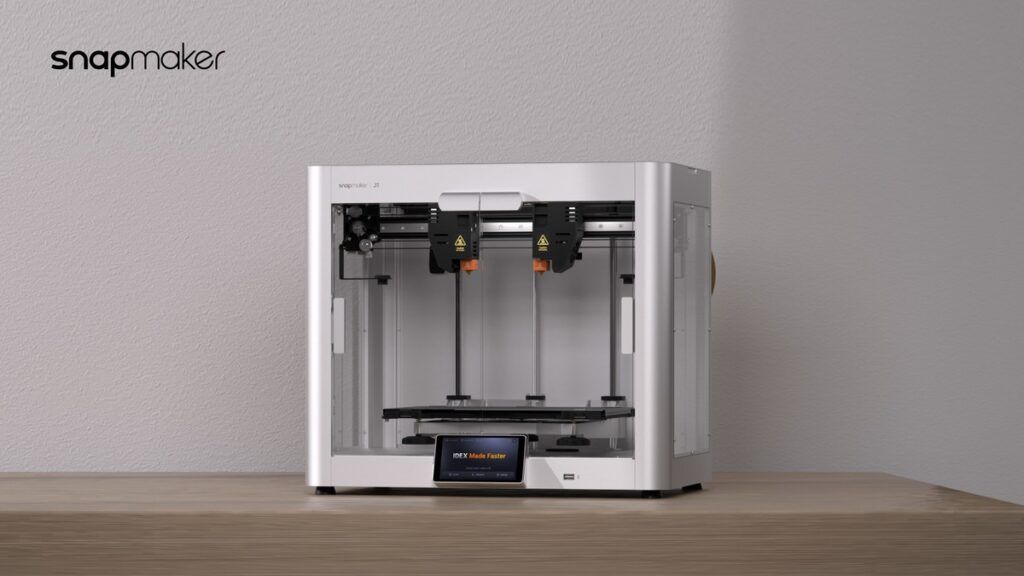

Snapmaker J1

Snapmaker's J1 stands out with its independent dual extruder (IDEX) system, allowing for versatile printing capabilities.

• Build Volume: 300 x 200 x 200 mm in single extruder mode; 150 x 200 x 200 mm in mirror mode; 160 x 200 x 200 mm in copy mode.
• Printing Speed: Up to 350 mm/s.

Features:
The Snapmaker J1 is a dual-extrusion 3D printer that stands out for its speed and versatility.

 Its IDEX (Independent Dual Extruder) system allows users to print with two materials simultaneously, supporting features like soluble supports or multi-color prints.

 The J1 operates in multiple modes, including mirror, duplication, and multi-material, giving users a wide range of creative options.

To maintain accuracy at high speeds, the J1 features a closed-loop feedback system that monitors and adjusts movements in real time, preventing layer shifts even during fast operations.

The printer’s sturdy aluminum frame reduces vibrations, ensuring consistent layer quality.

 Snapmaker has also incorporated a direct drive extruder system capable of handling a wide range of materials, from standard PLA to flexible filaments like TPU and engineering-grade filaments like PEEK and PC.

The auto-leveling feature is enhanced with a precise mesh leveling system, which works in conjunction with the heated bed to ensure perfect first layers.

For added convenience, the J1 includes a touchscreen interface with an intuitive UI, as well as Wi-Fi connectivity for remote monitoring and control. The printer also boasts dual Z-axis motors, which provide extra stability and precision during high-speed prints.

Its enclosure supports printing in temperature-sensitive materials like ABS and nylon by maintaining a controlled environment.

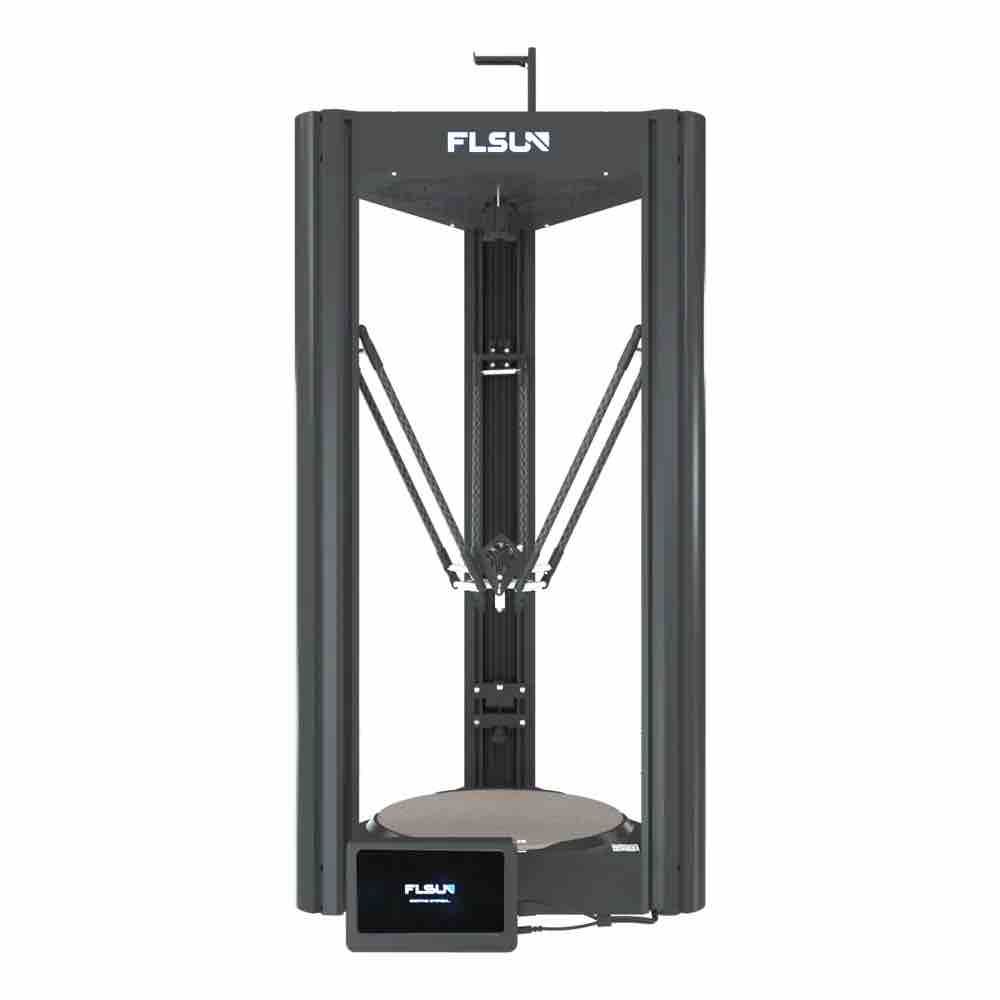

FLSun V400

The FLSun V400 is a delta-style printer designed for speed and efficiency.

• Build Volume: 300 (diameter) x 410 mm (height).
• Printing Speed: Up to 400 mm/s.
•


Features:
The FLSun V400 is a delta-style printer designed for exceptional speed and quality. Its delta kinematics system allows for smoother motion and faster print speeds, with the V400 capable of reaching up to 400 mm/s.

The lightweight and compact design of the delta system minimizes inertia, ensuring higher precision even during rapid movements.

The V400 includes a 32-bit control board with advanced motion planning algorithms, which optimize speed and accuracy. Its direct drive extruder supports flexible filaments like TPU and TPE while maintaining excellent consistency.

The printer’s touchscreen interface is user-friendly, providing access to advanced settings like temperature tuning, speed control, and filament loading with just a few taps.

The auto-leveling system ensures the bed is perfectly aligned for each print, while the heated bed supports a wide range of materials, including PLA, ABS, PETG, and more.

The V400 also features a large build volume (300 x 300 x 410 mm), making it suitable for bigger projects without compromising on speed or quality.

For added reliability, the printer includes filament detection and power recovery systems, reducing the risk of print failures.

For enthusiasts, the V400 offers compatibility with third-party slicers like Cura and Simplify3D, and its open-source firmware allows for custom modifications.

Combined with its robust design and high-speed performance, the FLSun V400 is a strong contender for both hobbyists and professionals.
